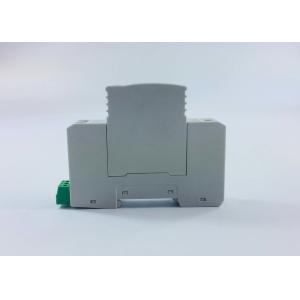

lightning protection module 1p.
Product Details
The power supply surge protector is suitable for AC 50/60Hz, TT,
TN-S, TN-C, IT and other power supply systems with rated operating
voltage 220V/380V, and factory low voltage power and control
system.
The protection of indirect lightning and direct lightning impact or
other transient overvoltage surge is mainly applicable to housing,
the third industry and industrial and mining enterprises, such as
surge protection.
Working principle of product
Under normal working condition, the lightning protection module is
in a high resistance state. When the power line has lightning
invasion or operation transient overvoltage, the lightning
protection module will immediately pass through the response speed
of nanosecond level, and limit the lightning overvoltage or
transient overvoltage to the voltage range allowed by the
electrical equipment, thus protecting the normal operation of the
electronic equipment.
And when the lightning overvoltage or transient overvoltage is
over, the lightning protection module quickly returns to the high
impedance state, and does not affect the normal power supply of the
grid.
Product specification
| Model | TRS2-C40 |
| Rated Operating Voitage | UC | 420 |
| Voltage protective level | Up(KV)≤ | 2.0 |
| Max discharge current | Imax(8/20μS) | 40 |
Nominal discharge current
| In(8/20μS) | 20 |
| Ressponse time | NS | <25 |
| Lndication of invalidation | Aging invalidation:green Normal,red:Invaldation |
| Operating condition | Temp:-40℃~+70℃ |
| RH≤95%(25℃) |
| Sea level elevation≤3km |
Remote signal function
| Can also picking |
| Remarks | Other max continuous operating voltage can be customized |
Product features
1. traffic flow to further improve safety
2. limit the precision of the voltage to say how much!
3. core components are strictly screened, stable performance and
reliable operation.
4. leakage current is small, the response time is fast, and the
residual pressure is low
Notice of product
1. data line: more than 2.5mm2; when the length of more than 0.5
meters of more than 4mm2.
2. in order to avoid unnecessary induction loops, we should mark
the PE conductor of each device
3. the energy coordination of multilevel SPD
