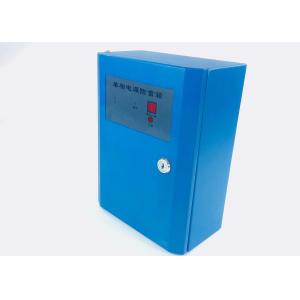

Three phase power supply, lightning protection, surge protector,
box type, lightning counter, indicator lamp
Brief introduction
The three phase power supply lightning protection box is used for
lightning protection of 220/380V distribution system, so as to
protect the equipment from damage caused by lightning overvoltage
along the power line. It is mainly installed in distribution rooms,
distribution cabinets, AC distribution panels, switchgear boxes and
other important equipments, which are easily subject to lightning
incoming power supply.
Working principle of product
n the normal working condition, the lightning protection module is
in the disconnected state and does not affect the normal work. When
the line has the impulse overvoltage at the moment when the
lightning strikes, the lightning arrester module quickly passes
through the very short time, short the overvoltage to the earth,
and when the pulse overvoltage disappears, the lightning arrester
module is resumed to disconnect. State, which does not affect the
power supply of the user.
Product features
1. double power supply system, up and down access structure.
2. using the latest arc extinguishing technology to avoid fire
completely
3. with the power status indicator, indicating the working state of
the lightning protector.
Product specification
1. Rated Operating Voitage:385V
2. system voltage:220V
3. Working frequency (HZ): 40～60
4. Voltage protection level: 1.8KV
5. Maximum flow rate :40KA
6. response time: L-N 25NS N-PE
7. Protection mode: L-N/L,N-PE
8. Terminal terminal: Maximum 16mm2
Use of attention
1. the lightning protection box can be suspended on the wall or
horizontally
2. after installation, close the automatic circuit breaker switch
and check whether the working condition is normal
3. protector is applied to the lightning protection of the main
power distribution system C level, and is installed on the incoming
end of the main distribution cabinet, the distribution cabinet or
the terminal electric cabinet in parallel.
Company profile
Thor is following the international quality system standards, is
ISO 9001 certified and our technical standards are in line with
GB18802.1-2011/IEC61643-1.
All types and classes of our lightning and surge arresters
20KA~200KA(8/20μS) and 15KA~50KA(10/350μS) are tested and pass all
the requirements based on their class.
